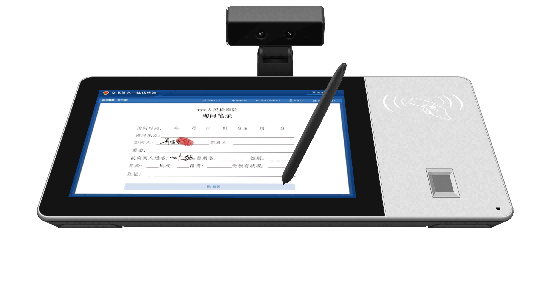

YF1016
10-inch Signature pad with fingerprint scanner and camera
- Customized Signature Pad Series
- YF 1016
Key Features:
> 10.1" Android/Linux dual system
> 1200x1920 portrait or 1280x800 resolution
> Integrated camera module
> Built-in fingerprint & IC card reader
> 2048 levels of pressure sensitivity
> Government & financial servicesFull Customization： Available in bespoke corporate colors and branding. Open API/SDK (C++, .Net, Java) for tailored interface development.
Model YF1016— Key Specifications
Item | Parameter | |
LCD Display | Screen Size | 10.1 inch |
Native Resolution | 1280 x 800 | |
Display Type | IPS LCD | |
Contrast Ratio | 800 : 1 | |
Brightness | 250 cd/m2 | |
Computer | CPU | ARM Quad-Core 1.8GHz |
RAM | 2GB / 4GB | |
Memory | 16GB / 64GB | |
Operation System | Android or Linux | |
Card Reader | Contact/ contactless | Supported |
Touch Input | Capacitive | 10 point finger touch |
Fingerprint | Sensor | Capacitive 256×360 Pixels 508 DPI |
Camera | Monocular or Binocular | 5MP, face recognition |
Voice | Voice recording/ push | Optional |
Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
Coordinate Resolution | 5080 LPI | |
Pressure Levels | 8192 | |
Reading Height | 10 mm | |
Report Rate | 233 points per second | |
General | Power Supply | 100-240V AC, 50/60Hz |
Interface | USB type-c, USB2.0, RJ45 optional | |
