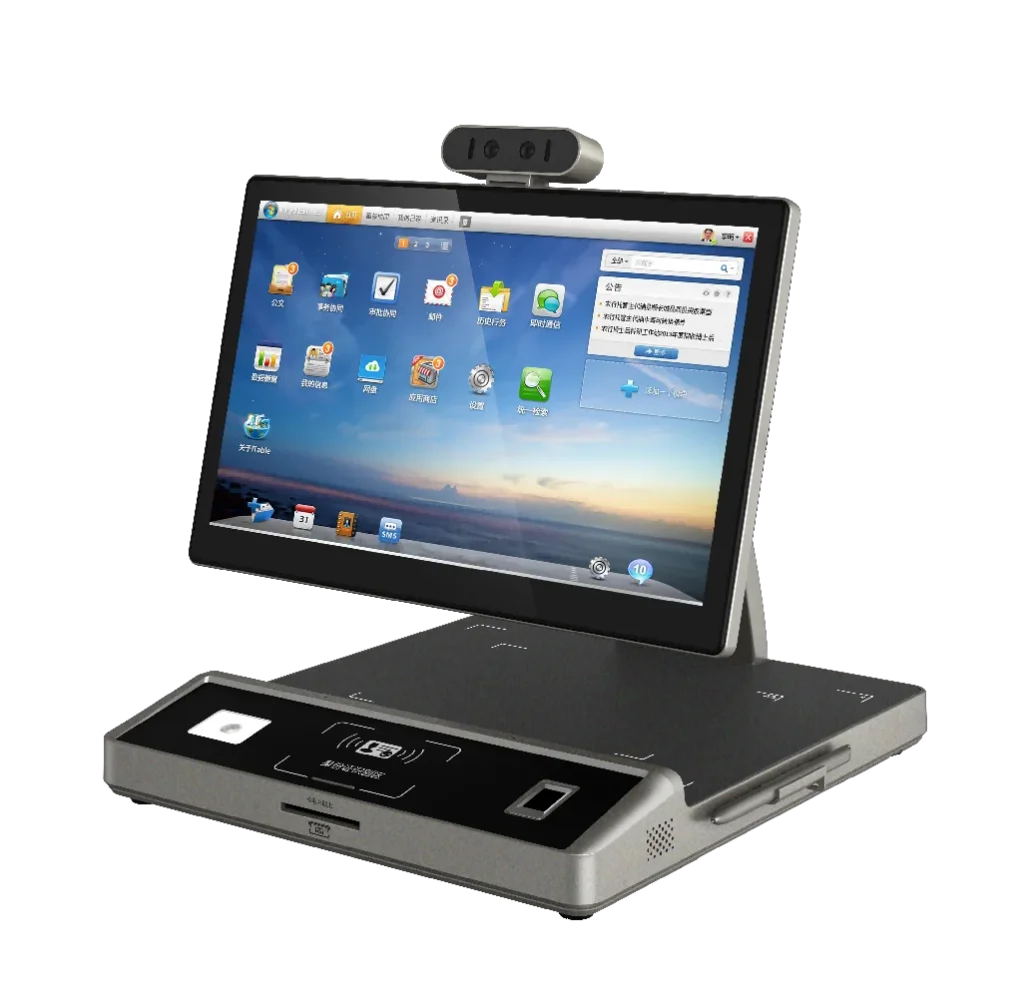

YST 156
15.6-inch All In one terminal
- Customized Signature Pad Series
- YST 156
Key Features:
> 15.6" Windows 10 all-in-one terminal
> Intel I5 processor, 8GB+256GB storage
> Face Camera, Document Camera, Fingerprint, IC Card, QR Scanner(Optional)
> Single or dual screen configuration
> Self-service, education & banking
Model YST156— Key Specifications
Item | Parameter | |
System Parameter | CPU | Intel I5/I7 2.0GHz, Windows 10/ Andriod |
DDR+EMMC | 8GB+256GB | |
Screen | Screen Size | 15.6 inchs/ 21.5 inchs |
Resolution | 1920×1080 | |
Touch screen technology | 10 points, G+G | |
Display Type | IPS LCD | |
Pen | Reading Technology | Battery-free Electromagnetic Resonance |
Pressure Levels | 8192 | |
Coordinate Accuracy | ±0.5mm(Center), ±2mm(Corner) | |
Reading Height | 10 mm | |
Report Rate | 233 points per second | |
General | Power Supply | DC12V x 10A |
Function modules | WiFi, Bluetooth, Microphone, Speaker, | |
Optional Function | Face Dual-Camera, Fingerprint Sanner, IC Card, QR Code, Document Scanner | |
Interface | 1*VGA, 1*HDMI, 8*USB, 1*Ethernet | |
Power Switch Button | ON and Off button controlled | |
System Management | Online software upgrade, device management | |
